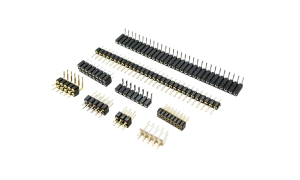

Round pin headers, often referred to as machined pin headers, are a high-precision version of standard pin connectors. Instead of stamped and formed pins, they feature solid, machined round pins that provide a more robust and reliable connection with superior mating cycles. The corresponding round pin sockets contain multi-finger beryllium copper clips that ensure a consistent and gas-tight connection point. This design makes them ideal for high-reliability applications, military, and medical devices where connection integrity is paramount.
The machined pin only works as intended with a compatible socket contact. Compare both drawings, then check engagement depth, alignment and PCB tolerances.
Match pin diameter, socket contact design, row layout and mating compatibility using the drawings for both components.
Confirm that the pin enters the active contact area without bottoming out or leaving insufficient engagement.
Review hole or pad geometry, connector alignment, board spacing and assembly tolerances for the complete pair.
Define the expected use, finish, environment and service cycle, then verify performance on the selected product data.
Round Pin Headers suit controlled PCB interfaces that need a precision socket and repeatable engagement. A general stamped header may be the simpler choice when those features are unnecessary.
Create a controlled mating point for fixtures, debugging equipment or production test when the socket and alignment are designed as a pair.
Connect removable boards or functional modules where compact precision contacts and serviceability are required.
Use a machined socket system when the mating pin geometry and contact engagement need closer control than a general stamped interface.
Support removable circuits or modules when the real mating duty, alignment and contact requirements have been verified.
Pin diameter, contact clip geometry and engagement depth have to agree. A shared row layout or contact count is not enough.
No. A Round Pin Header is a PCB header or socket system using round machined contacts. A Circular Connector is an enclosed cable or panel connector family.
Machined round contacts can support a precision socket geometry and controlled engagement. The final choice depends on cost, mating duty, contact design and application evidence.
No. Pin diameter, contact clip geometry, engagement depth, tolerances and layout must be compatible.
State the expected service duty and environment, then request verified data or project testing for the selected contact system.
